产品名称： |
PS3316P |
发布时间： |
2007/6/27 |

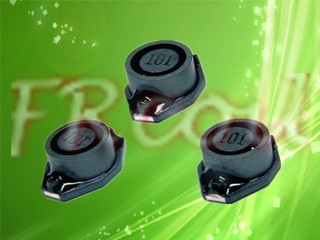

小 图： |
 |
| 所属大类： |
Shielded_Power_inductors |
所属小类： |
|
目 录： |
 |
最大尺寸(mm)： |
12.95*9.40*5.08 |
电感值范围： |
1.00μH—1000μH |
结 构： |
 |
|
|
产品型号： |
| Part Number |
Inductance |
Tolerance |
Q(min) |
SRF(MHz)(min) |
DCR(Ω)(max) |
IDC(mA)(max) |
Test Freq |
PS3316P-102M |
|
20 |
|
140 |
0.021 |
5000 |
100 KHz |
PS3316P-152M |
|
20 |
|
120 |
0.022 |
4500 |
100 KHz |
PS3316P-222M |
|
20 |
|
80 |
0.032 |
3800 |
100 KHz |
PS3316P-332M |
|
20 |
|
70 |
0.039 |
3300 |
100 KHz |
PS3316P-472M |
|
20 |
|
40 |
0.054 |
2700 |
100 KHz |
PS3316P-682M |
|
20 |
|
38 |
0.075 |
2200 |
100 KHz |
PS3316P-822M |
|
20 |
|
36 |
0.085 |
2100 |
100 KHz |
PS3316P-103M |
|
20 |
|
35 |
0.101 |
2000 |
100 KHz |
PS3316P-153M |
|
20 |
|
25 |
0.150 |
1500 |
100 KHz |
PS3316P-223M |
|
20 |
|
19 |
0.207 |
1300 |
100 KHz |
PS3316P-333M |
|
20 |
|
15 |
0.334 |
1100 |
100 KHz |
PS3316P-473M |
|
20 |
|
13 |
0.472 |
800 |
100 KHz |
PS3316P-683M |
|
20 |
|
10 |
0.660 |
700 |
100 KHz |
PS3316P-104M |
|
20 |
|
7 |
1.110 |
600 |
100 KHz |
PS3316P-154M |
|
20 |
|
6 |
1.550 |
500 |
100 KHz |
PS3316P-224M |
|
20 |
|
5 |
2.000 |
370 |
100 KHz |
PS3316P-105M |
|
20 |
|
2 |
8.300 |
170 |
100 KHz |
|
|
