产品名称： |
PS1246 |
发布时间： |
2012/6/21 |

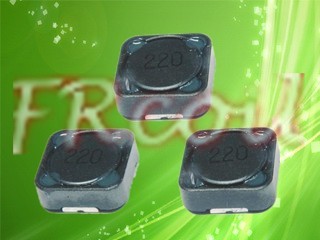

小 图： |
 |
| 所属大类： |
Shielded_Power_inductors |
所属小类： |
|
目 录： |
 |
最大尺寸(mm)： |
12.0*12.0*4.6 |
电感值范围： |
1.00μH—1000μH |
结 构： |
 |
|
|
产品型号： |
| Part Number |
Inductance |
Tolerance |
Q(min) |
SRF(MHz)(min) |
DCR(Ω)(max) |
IDC(mA)(max) |
Test Freq |
PS1246-102M |
|
20 |
|
100 |
0.0066 |
8000 |
100 KHz |
PS1246-472M |
|
20 |
|
42 |
0.0213 |
6000 |
100 KHz |
PS1246-562M |
|
20 |
|
37 |
0.0246 |
5750 |
100 KHz |
PS1246-682M |
|
20 |
|
33 |
0.0277 |
5200 |
100 KHz |
PS1246-822M |
|
20 |
|
31 |
0.0305 |
4870 |
100 KHz |
PS1246-103M |
|
20 |
|
27 |
0.0409 |
4200 |
100 KHz |
PS1246-123M |
|
20 |
|
24 |
0.0433 |
3950 |
100 KHz |
PS1246-153M |
|
20 |
|
22 |
0.0541 |
3800 |
100 KHz |
PS1246-183M |
|
20 |
|
19 |
0.0567 |
3520 |
100 KHz |
PS1246-223M |
|
20 |
|
18 |
0.0670 |
3400 |
100 KHz |
PS1246-273M |
|
20 |
|
16 |
0.0750 |
2960 |
100 KHz |
PS1246-333M |
|
20 |
|
15 |
0.0908 |
2600 |
100 KHz |
PS1246-393M |
|
20 |
|
13.3 |
0.1058 |
2390 |
100 KHz |
PS1246-473M |
|
20 |
|
12 |
0.1340 |
2100 |
100 KHz |
PS1246-563M |
|
20 |
|
10.6 |
0.1487 |
2010 |
100 KHz |
PS1246-683M |
|
20 |
|
9.7 |
0.1859 |
1800 |
100 KHz |
PS1246-823M |
|
20 |
|
8.8 |
0.2095 |
1720 |
100 KHz |
PS1246-104M |
|
20 |
|
8.0 |
0.2409 |
1600 |
100 KHz |
PS1246-124K |
|
10 |
|
7.2 |
0.3192 |
1420 |
100 KHz |
PS1246-154K |
|
10 |
|
6.6 |
0.3630 |
1300 |
100 KHz |
PS1246-184K |
|
10 |
|
5.9 |
0.4217 |
1210 |
100 KHz |
PS1246-224K |
|
10 |
|
5.3 |
0.5425 |
1000 |
100 KHz |
PS1246-274K |
|
10 |
|
4.7 |
0.6224 |
950 |
100 KHz |
PS1246-334K |
|
10 |
|
4.1 |
0.8127 |
870 |
100 KHz |
PS1246-394K |
|
10 |
|
3.8 |
0.9042 |
790 |
100 KHz |
PS1246-474K |
|
10 |
|
3.5 |
1.039 |
760 |
100 KHz |
PS1246-564K |
|
10 |
|
3.0 |
1.326 |
670 |
100 KHz |
PS1246-684K |
|
10 |
|
2.8 |
1.523 |
620 |
100 KHz |
PS1246-824K |
|
10 |
|
2.6 |
1.767 |
580 |
100 KHz |
PS1246-105K |
|
10 |
|
2.4 |
2.323 |
500 |
100 KHz |
|
|
| 产品说明： |
|
|
