产品名称： |
DR1012 |
发布时间： |
2012/8/31 |

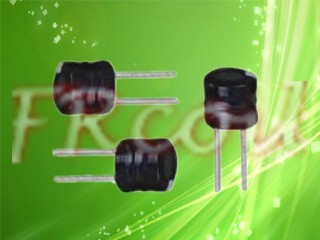

小 图： |
 |
| 所属大类： |
DR_Radial_Series_Inductors |
所属小类： |
|
目 录： |
 |
最大尺寸(mm)： |
12.0*12.0*16.5 |
电感值范围： |
1.00μH—1000μH |

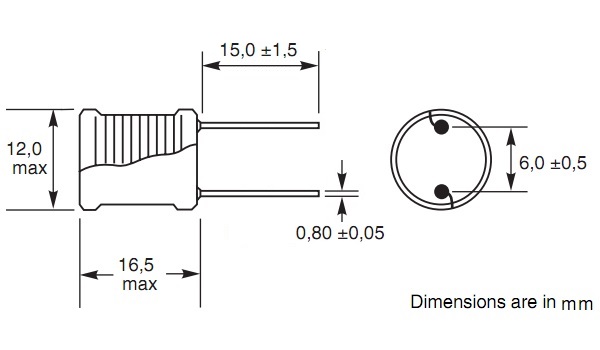

结 构： |
 |
|
|
产品型号： |
| Part Number |
Inductance |
Tolerance |
Q(min) |
SRF(MHz)(min) |
DCR(Ω)(max) |
IDC(mA)(max) |
Test Freq |
DR1012-102N |
|
30 |
|
|
0.010 |
6000 |
1 KHz |
DR1012-152N |
|
30 |
|
|
0.010 |
6000 |
1 KHz |
DR1012-182N |
|
30 |
|
|
0.015 |
6000 |
1 KHz |
DR1012-272N |
|
30 |
|
|
0.015 |
5500 |
1 KHz |
DR1012-332N |
|
30 |
|
|
0.015 |
5500 |
1 KHz |
DR1012-392N |
|
30 |
|
|
0.020 |
5000 |
1 KHz |
DR1012-472N |
|
30 |
|
|
0.020 |
5000 |
1 KHz |
DR1012-562N |
|
30 |
|
|
0.025 |
4800 |
1 KHz |
DR1012-682N |
|
30 |
|
|
0.025 |
4800 |
1 KHz |
DR1012-822N |
|
30 |
|
|
0.025 |
4500 |
1 KHz |
DR1012-103M |
|
20 |
|
|
0.025 |
4500 |
1 KHz |
DR1012-123M |
|
20 |
|
|
0.025 |
4300 |
1 KHz |
DR1012-153M |
|
20 |
|
|
0.035 |
4300 |
1 KHz |
DR1012-183M |
|
20 |
|
|
0.040 |
4000 |
1 KHz |
DR1012-223M |
|
20 |
|
|
0.045 |
3700 |
1 KHz |
DR1012-273M |
|
20 |
|
|
0.045 |
3500 |
1 KHz |
DR1012-333M |
|
20 |
|
|
0.055 |
3000 |
1 KHz |
DR1012-393M |
|
20 |
|
|
0.060 |
2500 |
1 KHz |
DR1012-473M |
|
20 |
|
|
0.080 |
2300 |
1 KHz |
DR1012-563M |
|
20 |
|
|
0.085 |
2000 |
1 KHz |
DR1012-683M |
|
20 |
|
|
0.095 |
2000 |
1 KHz |
DR1012-823M |
|
20 |
|
|
0.110 |
1800 |
1 KHz |
DR1012-104M |
|
20 |
|
|
0.140 |
1700 |
1 KHz |
DR1012-124M |
|
20 |
|
|
0.160 |
1500 |
1 KHz |
DR1012-154M |
|
20 |
|
|
0.180 |
1400 |
1 KHz |
DR1012-184M |
|
20 |
|
|
0.250 |
1300 |
1 KHz |
DR1012-224M |
|
20 |
|
|
0.280 |
1000 |
1 KHz |
DR1012-274M |
|
20 |
|
|
0.420 |
900 |
1 KHz |
DR1012-334M |
|
20 |
|
|
0.540 |
800 |
1 KHz |
DR1012-394M |
|
20 |
|
|
0.600 |
800 |
1 KHz |
DR1012-474M |
|
20 |
|
|
0.660 |
700 |
1 KHz |
DR1012-564M |
|
20 |
|
|
0.740 |
600 |
1 KHz |
DR1012-684M |
|
20 |
|
|
0.840 |
500 |
1 KHz |
DR1012-824M |
|
20 |
|
|
1.080 |
500 |
1 KHz |
DR1012-105M |
|
20 |
|
|
1.390 |
500 |
1 KHz |
|
|
| 产品说明： |
|
|
