产品名称： |
PS1048(105R) |
发布时间： |
2012/6/21 |

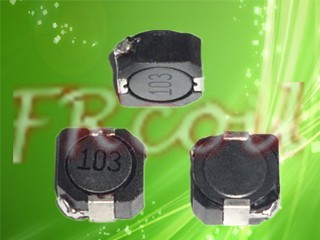

小 图： |
 |
| 所属大类： |
Shielded_Power_inductors |
所属小类： |
|
目 录： |
 |
最大尺寸(mm)： |
10.3*10.4*5.0 |
电感值范围： |
0.80μH—330μH |
结 构： |
 |
|
|
产品型号： |
| Part Number |
Inductance |
Tolerance |
Q(min) |
SRF(MHz)(min) |
DCR(Ω)(max) |
IDC(mA)(max) |
Test Freq |
PS1048-801N |
|
30 |
|
180 |
0.0043 |
9600 |
100 KHz |
PS1048-152N |
|
30 |
|
90 |
0.0058 |
5440 |
100 KHz |
PS1048-222N |
|
30 |
|
70 |
0.0072 |
4920 |
100 KHz |
PS1048-332N |
|
30 |
|
50 |
0.0104 |
4620 |
100 KHz |
PS1048-472N |
|
30 |
|
38 |
0.0123 |
4360 |
100 KHz |
PS1048-682N |
|
30 |
|
35 |
0.0180 |
3600 |
100 KHz |
PS1048-822N |
|
30 |
|
28 |
0.0200 |
3140 |
100 KHz |
PS1048-103M |
|
20 |
|
24 |
0.0260 |
3080 |
100 KHz |
PS1048-153M |
|
20 |
|
20 |
0.0410 |
2460 |
100 KHz |
PS1048-223M |
|
20 |
|
12 |
0.0610 |
2360 |
100 KHz |
PS1048-333M |
|
20 |
|
11 |
0.0840 |
1660 |
100 KHz |
PS1048-473M |
|
20 |
|
10 |
0.1300 |
1440 |
100 KHz |
PS1048-563M |
|
20 |
|
10 |
0.1490 |
1360 |
100 KHz |
PS1048-683M |
|
20 |
|
7 |
0.2010 |
1280 |
100 KHz |
PS1048-823M |
|
20 |
|
6 |
0.2270 |
1080 |
100 KHz |
PS1048-104M |
|
20 |
|
6 |
0.2530 |
990 |
100 KHz |
PS1048-154K |
|
10 |
|
5 |
0.3700 |
790 |
100 KHz |
PS1048-184K |
|
10 |
|
4.5 |
0.4500 |
750 |
100 KHz |
PS1048-224K |
|
10 |
|
4.5 |
0.5000 |
670 |
100 KHz |
PS1048-334K |
|
10 |
|
3 |
0.8120 |
570 |
100 KHz |
|
|
| 产品说明： |
|
|
