产品名称： |

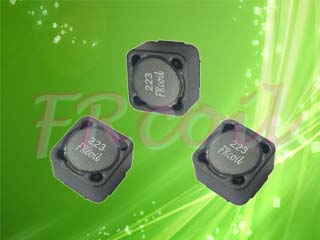

PS1278 |
发布时间： |
2012/6/21 |
小 图： |
 |
| 所属大类： |
Shielded_Power_inductors |
所属小类： |
|
目 录： |
 |
最大尺寸(mm)： |
12.3*12.3*8.05 |
电感值范围： |
1.40μH—1000μH |
结 构： |
 |
|
|
产品型号： |
| Part Number |
Inductance |
Tolerance |
Q(min) |
SRF(MHz)(min) |
DCR(Ω)(max) |
IDC(mA)(max) |
Test Freq |
PS1278-142M |
|
20 |
|
80 |
0.0098 |
10000 |
100 KHz |
PS1278-472M |
|
20 |
|
30 |
0.0155 |
6200 |
100 KHz |
PS1278-562M |
|
20 |
|
24 |
0.0175 |
6200 |
100 KHz |
PS1278-682M |
|
20 |
|
21 |
0.0213 |
6000 |
100 KHz |
PS1278-822M |
|
20 |
|
20 |
0.0226 |
5900 |
100 KHz |
PS1278-103M |
|
20 |
|
17 |
0.0243 |
5700 |
100 KHz |
PS1278-123M |
|
20 |
|
15 |
0.0258 |
5200 |
100 KHz |
PS1278-153M |
|
20 |
|
13 |
0.0310 |
4900 |
100 KHz |
PS1278-183M |
|
20 |
|
12 |
0.0343 |
4500 |
100 KHz |
PS1278-223M |
|
20 |
|
11 |
0.0395 |
4000 |
100 KHz |
PS1278-273M |
|
20 |
|
10 |
0.0500 |
3600 |
100 KHz |
PS1278-333M |
|
20 |
|
9.5 |
0.0688 |
3100 |
100 KHz |
PS1278-393M |
|
20 |
|
8.5 |
0.0768 |
3000 |
100 KHz |
PS1278-473M |
|
20 |
|
7.5 |
0.0804 |
2900 |
100 KHz |
PS1278-563M |
|
20 |
|
7.0 |
0.0892 |
2700 |
100 KHz |
PS1278-683M |
|
20 |
|
6.5 |
0.1015 |
2600 |
100 KHz |
PS1278-823M |
|
20 |
|
5.0 |
0.1399 |
2300 |
100 KHz |
PS1278-104M |
|
20 |
|
4.5 |
0.1502 |
2200 |
100 KHz |
PS1278-124K |
|
10 |
|
4.3 |
0.2026 |
1900 |
100 KHz |
PS1278-154K |
|
10 |
|
4.1 |
0.2406 |
1800 |
100 KHz |
PS1278-184K |
|
10 |
|
4.0 |
0.2545 |
1700 |
100 KHz |
PS1278-224K |
|
10 |
|
3.4 |
0.3596 |
1600 |
100 KHz |
PS1278-274K |
|
10 |
|
3.1 |
0.4618 |
1200 |
100 KHz |
PS1278-334K |
|
10 |
|
2.9 |
0.5415 |
1000 |
100 KHz |
PS1278-394K |
|
10 |
|
2.7 |
0.5929 |
1000 |
100 KHz |
PS1278-474K |
|
10 |
|
2.2 |
0.7862 |
900 |
100 KHz |
PS1278-564K |
|
10 |
|
2.0 |
0.8638 |
800 |
100 KHz |
PS1278-684K |
|
10 |
|
1.7 |
1.1620 |
750 |
100 KHz |
PS1278-824K |
|
10 |
|
1.4 |
1.2960 |
700 |
100 KHz |
PS1278-105K |
|
10 |
|
1.3 |
1.4830 |
680 |
100 KHz |
|
|
| 产品说明： |
|
|
