产品名称： |
DR0810 |
发布时间： |
2012/8/31 |

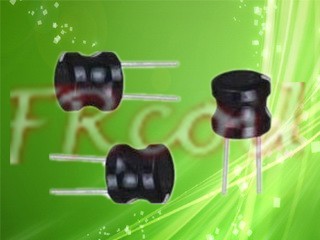

小 图： |
 |
| 所属大类： |
DR_Radial_Series_Inductors |
所属小类： |
|
目 录： |
 |
最大尺寸(mm)： |
10.0*10.0*14.0 |
电感值范围： |
1.00μH—1000μH |

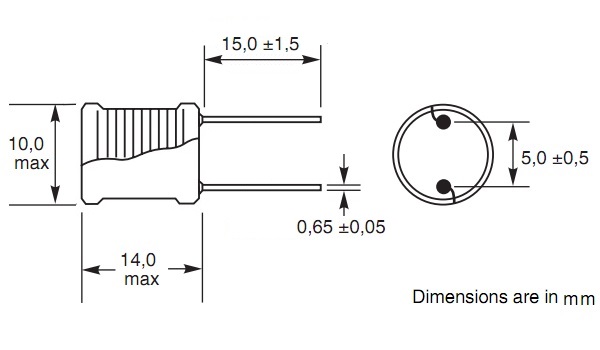

结 构： |
 |
|
|
产品型号： |
| Part Number |
Inductance |
Tolerance |
Q(min) |
SRF(MHz)(min) |
DCR(Ω)(max) |
IDC(mA)(max) |
Test Freq |
DR0810-102N |
|
30 |
|
|
0.015 |
4500 |
1 KHz |
DR0810-152N |
|
30 |
|
|
0.020 |
4500 |
1 KHz |
DR0810-222N |
|
30 |
|
|
0.020 |
4200 |
1 KHz |
DR0810-272N |
|
30 |
|
|
0.020 |
4200 |
1 KHz |
DR0810-332N |
|
30 |
|
|
0.020 |
4000 |
1 KHz |
DR0810-392N |
|
30 |
|
|
0.020 |
4000 |
1 KHz |
DR0810-472N |
|
30 |
|
|
0.025 |
4000 |
1 KHz |
DR0810-562N |
|
30 |
|
|
0.025 |
4000 |
1 KHz |
DR0810-682N |
|
30 |
|
|
0.025 |
4000 |
1 KHz |
DR0810-822N |
|
30 |
|
|
0.035 |
3800 |
1 KHz |
DR0810-103M |
|
20 |
|
|
0.040 |
3800 |
1 KHz |
DR0810-123M |
|
20 |
|
|
0.040 |
3200 |
1 KHz |
DR0810-153M |
|
20 |
|
|
0.045 |
2800 |
1 KHz |
DR0810-183M |
|
20 |
|
|
0.060 |
2500 |
1 KHz |
DR0810-223M |
|
20 |
|
|
0.070 |
2100 |
1 KHz |
DR0810-273M |
|
20 |
|
|
0.085 |
2000 |
1 KHz |
DR0810-333M |
|
20 |
|
|
0.090 |
1800 |
1 KHz |
DR0810-393M |
|
20 |
|
|
0.100 |
1600 |
1 KHz |
DR0810-473M |
|
20 |
|
|
0.110 |
1500 |
1 KHz |
DR0810-563M |
|
20 |
|
|
0.150 |
1300 |
1 KHz |
DR0810-683M |
|
20 |
|
|
0.190 |
1000 |
1 KHz |
DR0810-823M |
|
20 |
|
|
0.210 |
900 |
1 KHz |
DR0810-104M |
|
20 |
|
|
0.240 |
800 |
1 KHz |
DR0810-124M |
|
20 |
|
|
0.260 |
800 |
1 KHz |
DR0810-154M |
|
20 |
|
|
0.310 |
750 |
1 KHz |
DR0810-184M |
|
20 |
|
|
0.380 |
700 |
1 KHz |
DR0810-224M |
|
20 |
|
|
0.430 |
650 |
1 KHz |
DR0810-274M |
|
20 |
|
|
0.490 |
630 |
1 KHz |
DR0810-334M |
|
20 |
|
|
0.660 |
600 |
1 KHz |
DR0810-394M |
|
20 |
|
|
0.790 |
580 |
1 KHz |
DR0810-474M |
|
20 |
|
|
0.910 |
520 |
1 KHz |
DR0810-564M |
|
20 |
|
|
1.130 |
500 |
1 KHz |
DR0810-684M |
|
20 |
|
|
1.300 |
400 |
1 KHz |
DR0810-824M |
|
20 |
|
|
1.530 |
300 |
1 KHz |
DR0810-105M |
|
20 |
|
|
1.800 |
270 |
1 KHz |
|
|
| 产品说明： |
|
|
