产品名称： |
DR0912 |
发布时间： |
2012/8/31 |

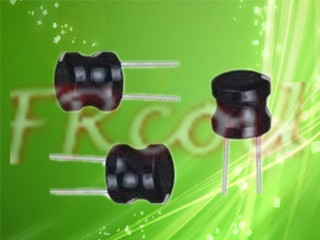

小 图： |
 |
| 所属大类： |
DR_Radial_Series_Inductors |
所属小类： |
|
目 录： |
 |

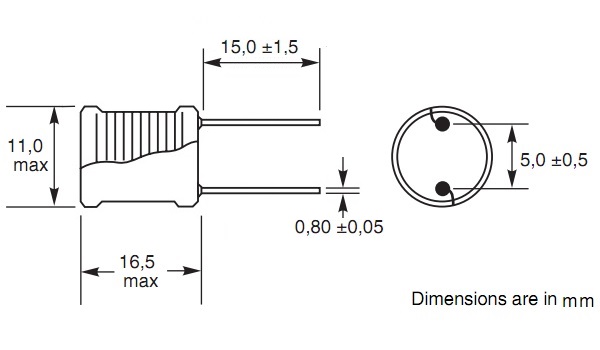

最大尺寸(mm)： |
11.0*11.0*16.5 |
电感值范围： |
1.00μH—1000μH |
结 构： |
 |
|
|
产品型号： |
| Part Number |
Inductance |
Tolerance |
Q(min) |
SRF(MHz)(min) |
DCR(Ω)(max) |
IDC(mA)(max) |
Test Freq |
DR0912-102N |
|
30 |
|
|
0.015 |
5000 |
1 KHz |
DR0912-152N |
|
30 |
|
|
0.015 |
5000 |
1 KHz |
DR0912-182N |
|
30 |
|
|
0.015 |
5000 |
1 KHz |
DR0912-222N |
|
30 |
|
|
0.015 |
5000 |
1 KHz |
DR0912-332N |
|
30 |
|
|
0.020 |
4800 |
1 KHz |
DR0912-392N |
|
30 |
|
|
0.020 |
4800 |
1 KHz |
DR0912-472N |
|
30 |
|
|
0.020 |
4500 |
1 KHz |
DR0912-562N |
|
30 |
|
|
0.025 |
4000 |
1 KHz |
DR0912-682N |
|
30 |
|
|
0.025 |
3900 |
1 KHz |
DR0912-822N |
|
30 |
|
|
0.025 |
3500 |
1 KHz |
DR0912-103M |
|
20 |
|
|
0.030 |
3400 |
1 KHz |
DR0912-123M |
|
20 |
|
|
0.030 |
3200 |
1 KHz |
DR0912-153M |
|
20 |
|
|
0.040 |
3000 |
1 KHz |
DR0912-183M |
|
20 |
|
|
0.045 |
2800 |
1 KHz |
DR0912-223M |
|
20 |
|
|
0.050 |
2700 |
1 KHz |
DR0912-273M |
|
20 |
|
|
0.055 |
2500 |
1 KHz |
DR0912-333M |
|
20 |
|
|
0.055 |
2500 |
1 KHz |
DR0912-393M |
|
20 |
|
|
0.060 |
2000 |
1 KHz |
DR0912-473M |
|
20 |
|
|
0.070 |
1800 |
1 KHz |
DR0912-563M |
|
20 |
|
|
0.080 |
1700 |
1 KHz |
DR0912-683M |
|
20 |
|
|
0.090 |
1500 |
1 KHz |
DR0912-823M |
|
20 |
|
|
0.110 |
1400 |
1 KHz |
DR0912-104M |
|
20 |
|
|
0.160 |
1200 |
1 KHz |
DR0912-124M |
|
20 |
|
|
0.170 |
1100 |
1 KHz |
DR0912-154M |
|
20 |
|
|
0.200 |
1000 |
1 KHz |
DR0912-184M |
|
20 |
|
|
0.220 |
900 |
1 KHz |
DR0912-224M |
|
20 |
|
|
0.260 |
800 |
1 KHz |
DR0912-274M |
|
20 |
|
|
0.390 |
700 |
1 KHz |
DR0912-334M |
|
20 |
|
|
0.450 |
500 |
1 KHz |
DR0912-394M |
|
20 |
|
|
0.490 |
450 |
1 KHz |
DR0912-474M |
|
20 |
|
|
0.620 |
430 |
1 KHz |
DR0912-564M |
|
20 |
|
|
0.640 |
400 |
1 KHz |
DR0912-684M |
|
20 |
|
|
0.790 |
380 |
1 KHz |
DR0912-824M |
|
20 |
|
|
1.340 |
350 |
1 KHz |
DR0912-105M |
|
20 |
|
|
1.820 |
300 |
1 KHz |
|
|
| 产品说明： |
|
|
